FLEXURA SERIES
High-efficiency modular lighting solution for channel letters & sign boxes.

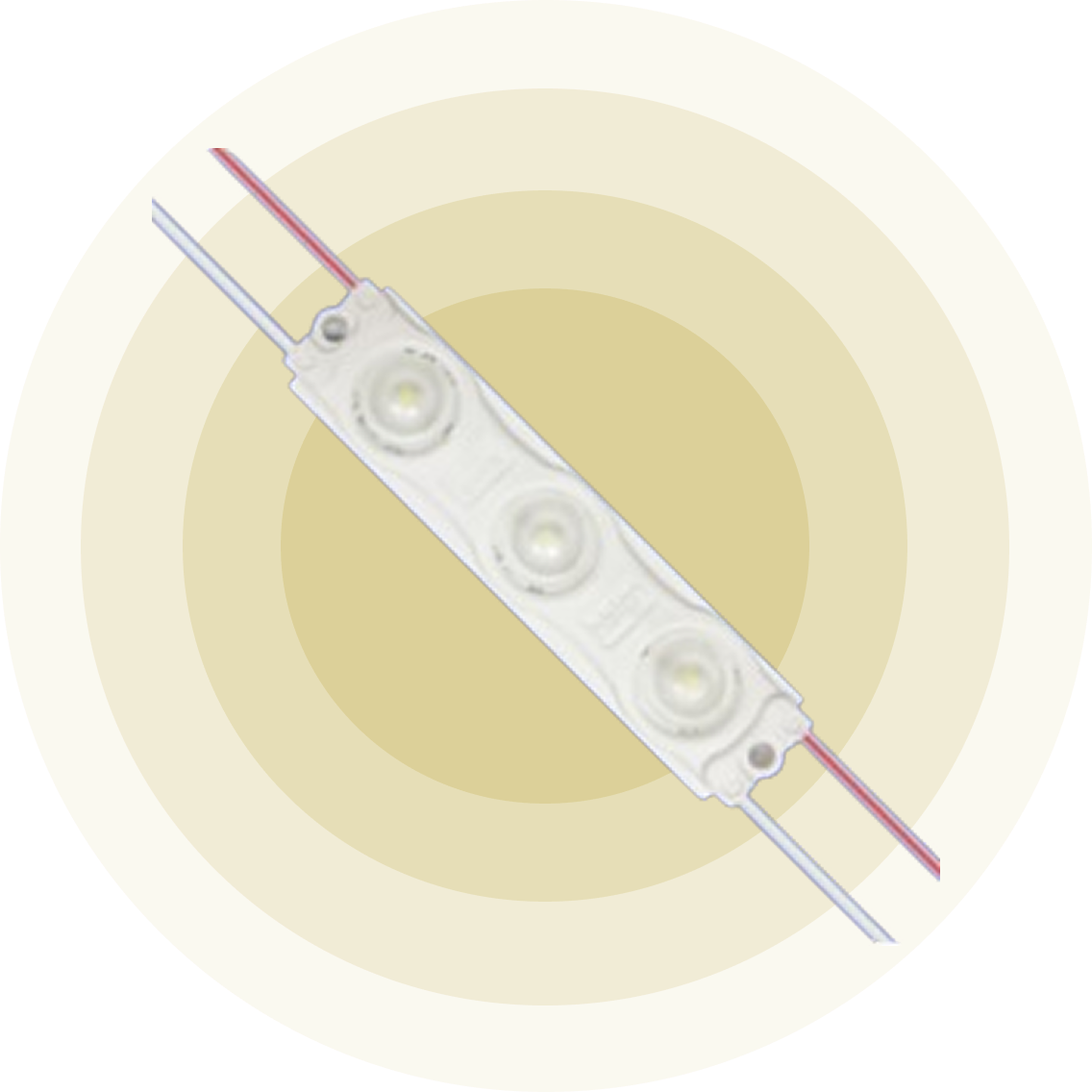

Flexura-1 (F5)
High-efficiency 12V LED module suitable for 5–8 inch deep signage and illuminated advertising.
Model Name: Flexura-1 (F5)
Colour Temperature: 3000K, 4000K, 6500K
10000K
Wattage: 1.2W
Luminous Flux: 120 Lm/module
Beam Angle: 160°
Application: Channel Letters, Acrylic Signboards, Fascia Panels

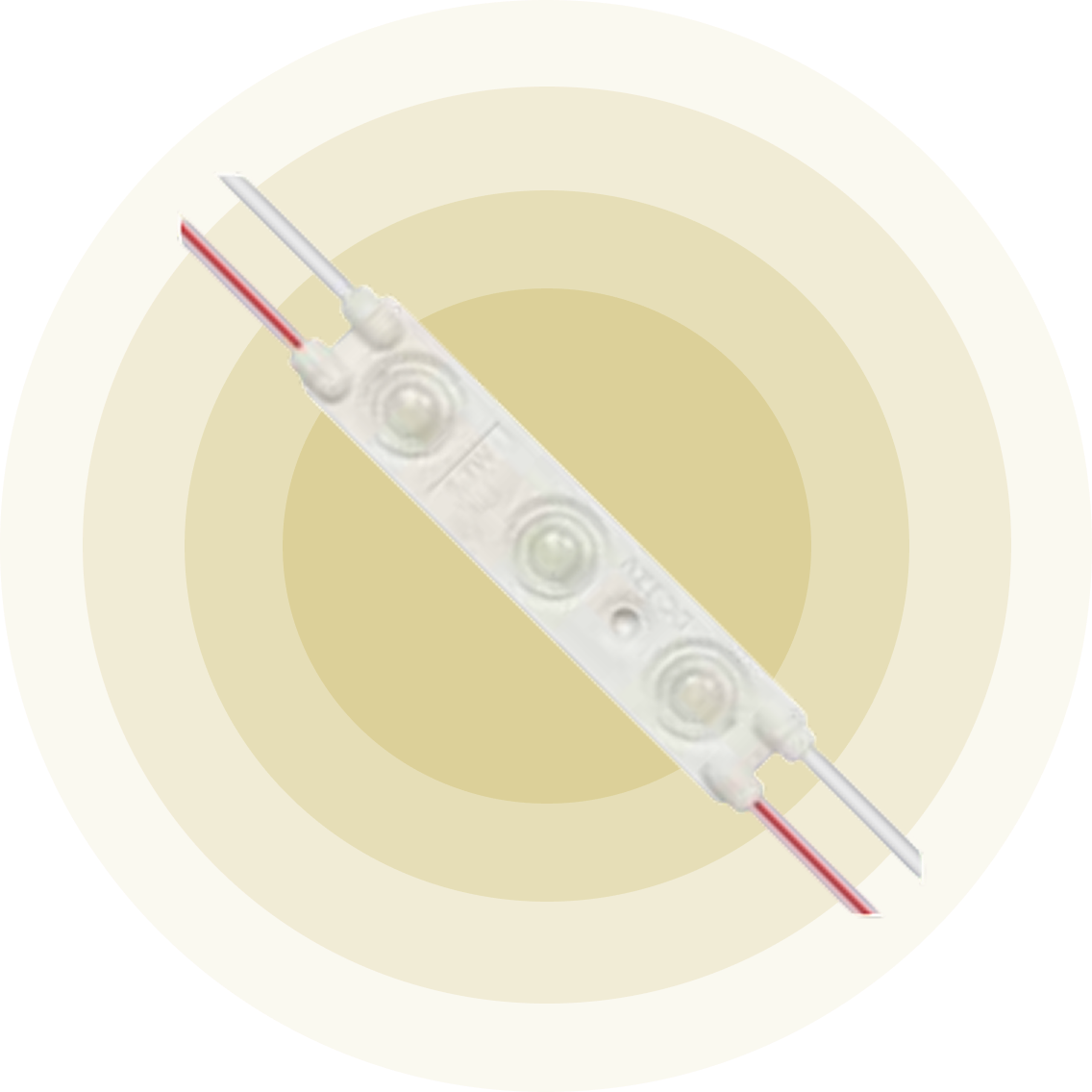

Flexura-6
Constant voltage LED module for medium-depth signage lighting.
Model Name: Flexura-6
Colour Temperature: 6500K, 10000K
Wattage: 1.2W
Luminous Flux: 120 Lm/module
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box

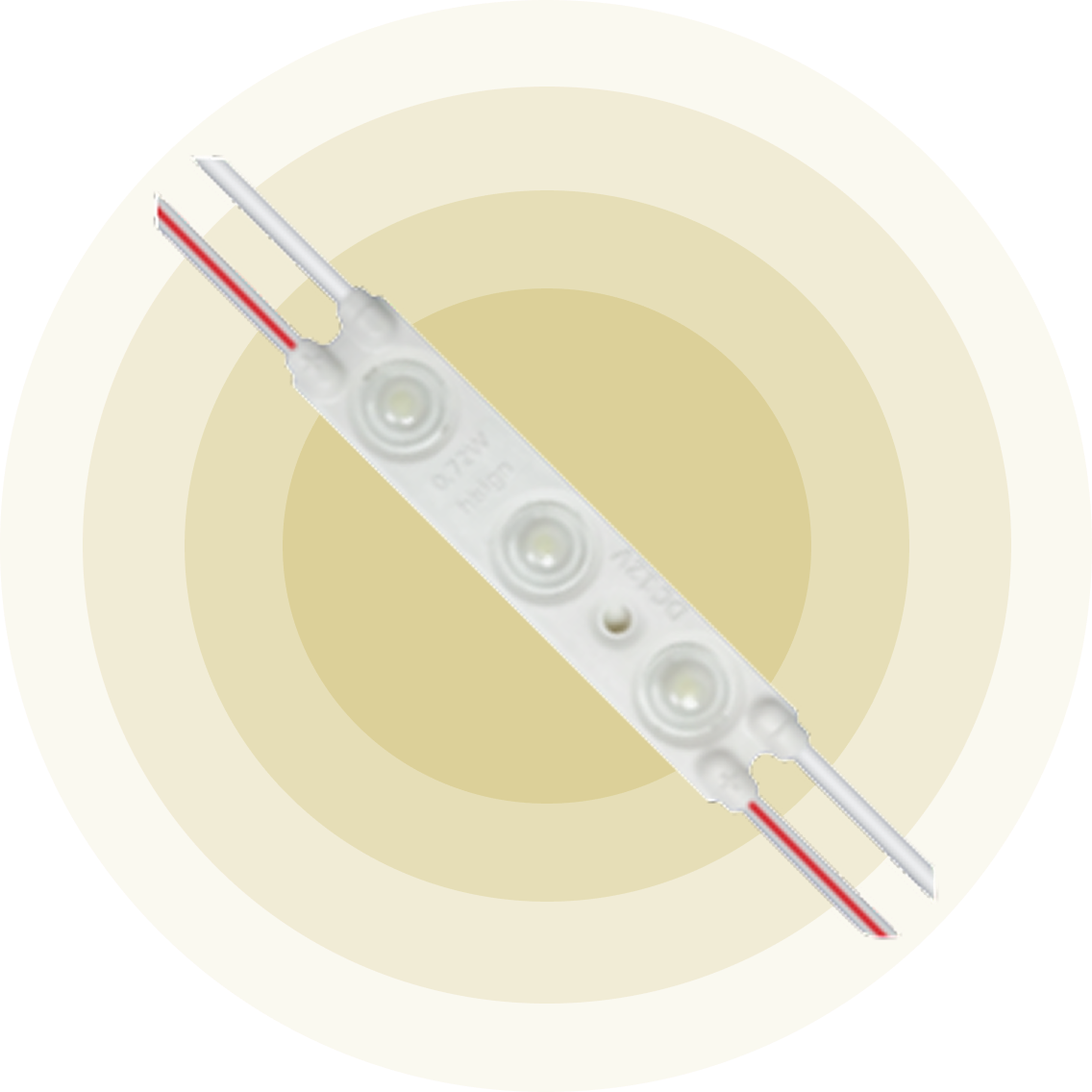

Flexura-6N
Model Name: Flexura 6N
Colour Temperature: 3000K, 4000K, 6500K, 10000K, Red
Wattage: 0.72W
Luminous Flux: 72
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit box

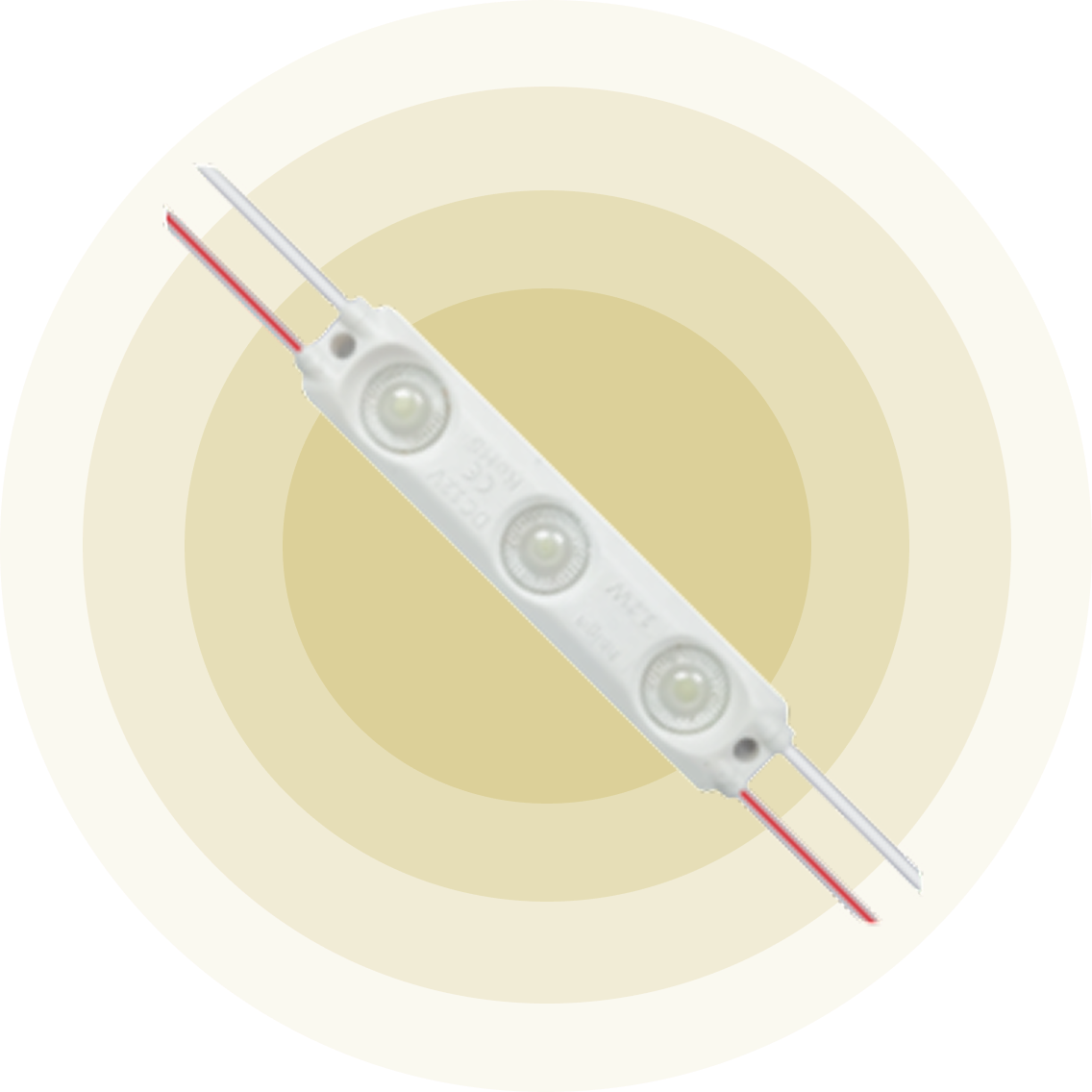

Flexura-7
IP65 rated LED module with stable performance for signage and channel letters.
Model Name: Flexura-7
Colour Temperature: 3000K, 4000K, 6500K, 10000K, Red, Blue
Wattage: 1.2W
Luminous Flux: 115 Lm/module
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box

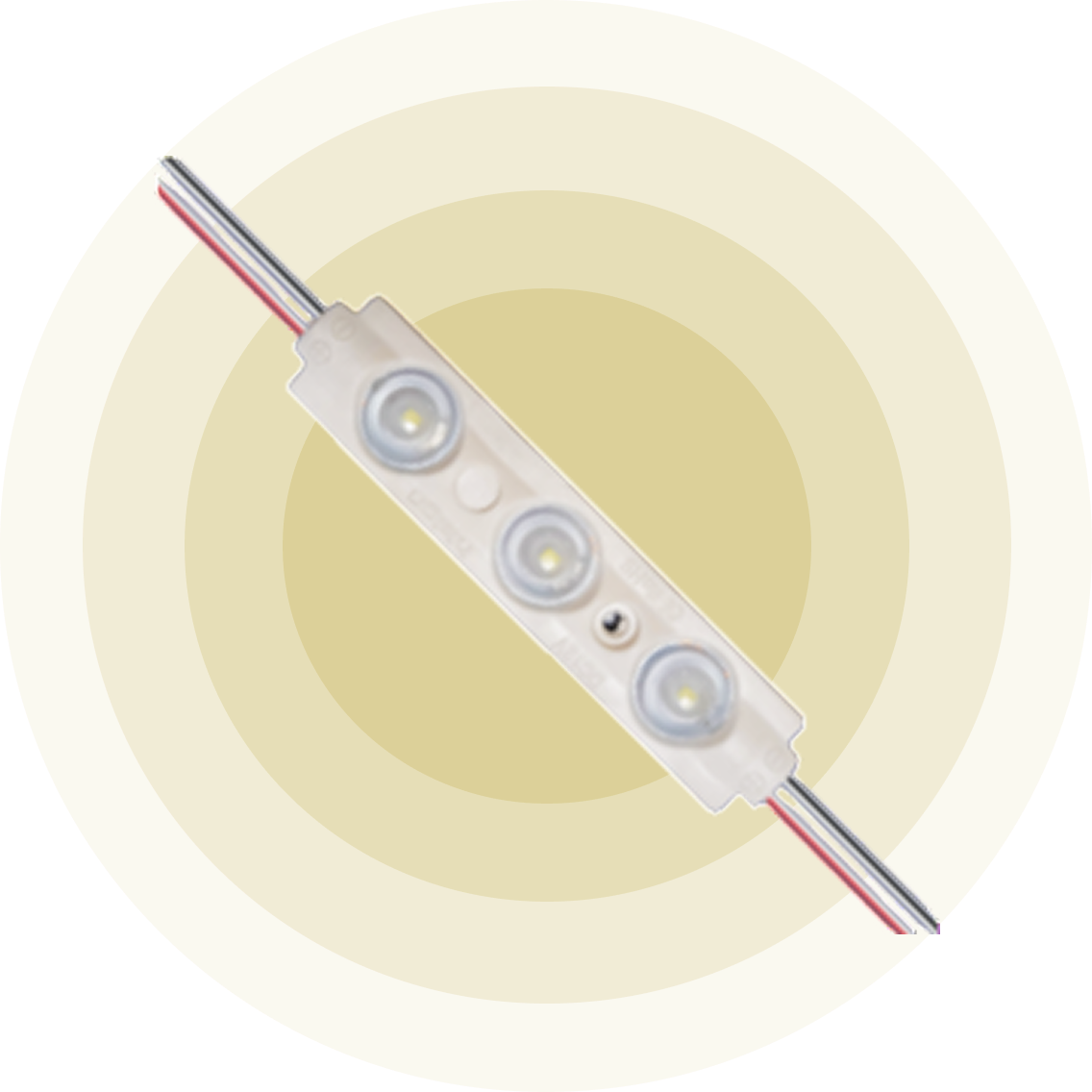

Flexura-24
12V variant designed for long wiring runs and large signage installations.
Model Name: Flexura 24
Colour Temperature: 6500K
Wattage: 1.5W
Luminous Flux: 145 Lm
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box

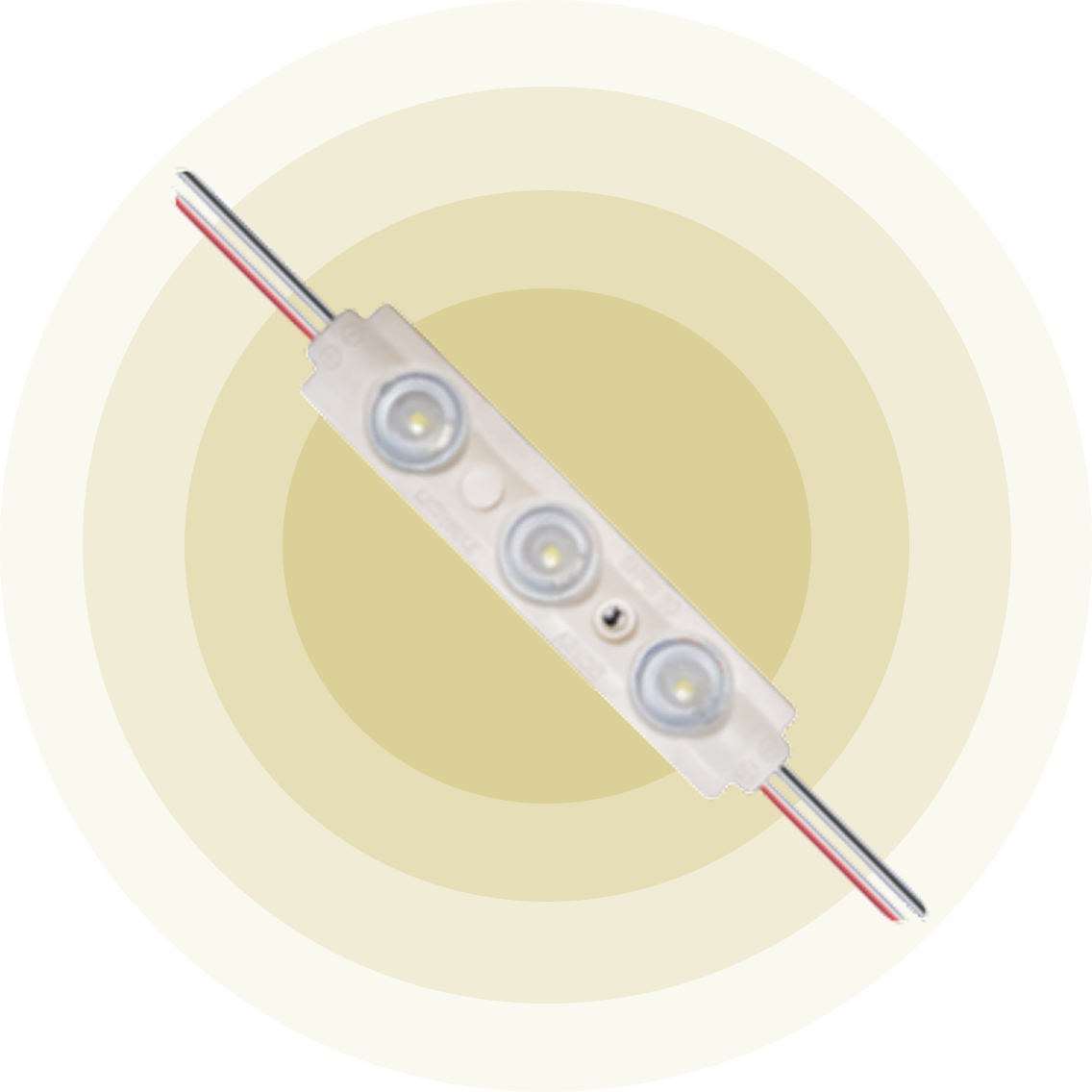

Flexura-103
Premium series modules with enhanced optical lens technology for uniform illumination in deep channel letters.
Model Name: Flexura 103
Colour Temperature: 3000K, 4000K, 6500K, 10000K, Red, Blue
Wattage: 1.2W, 1.5W
Luminous Flux: 115 Lm & 145 Lm
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box

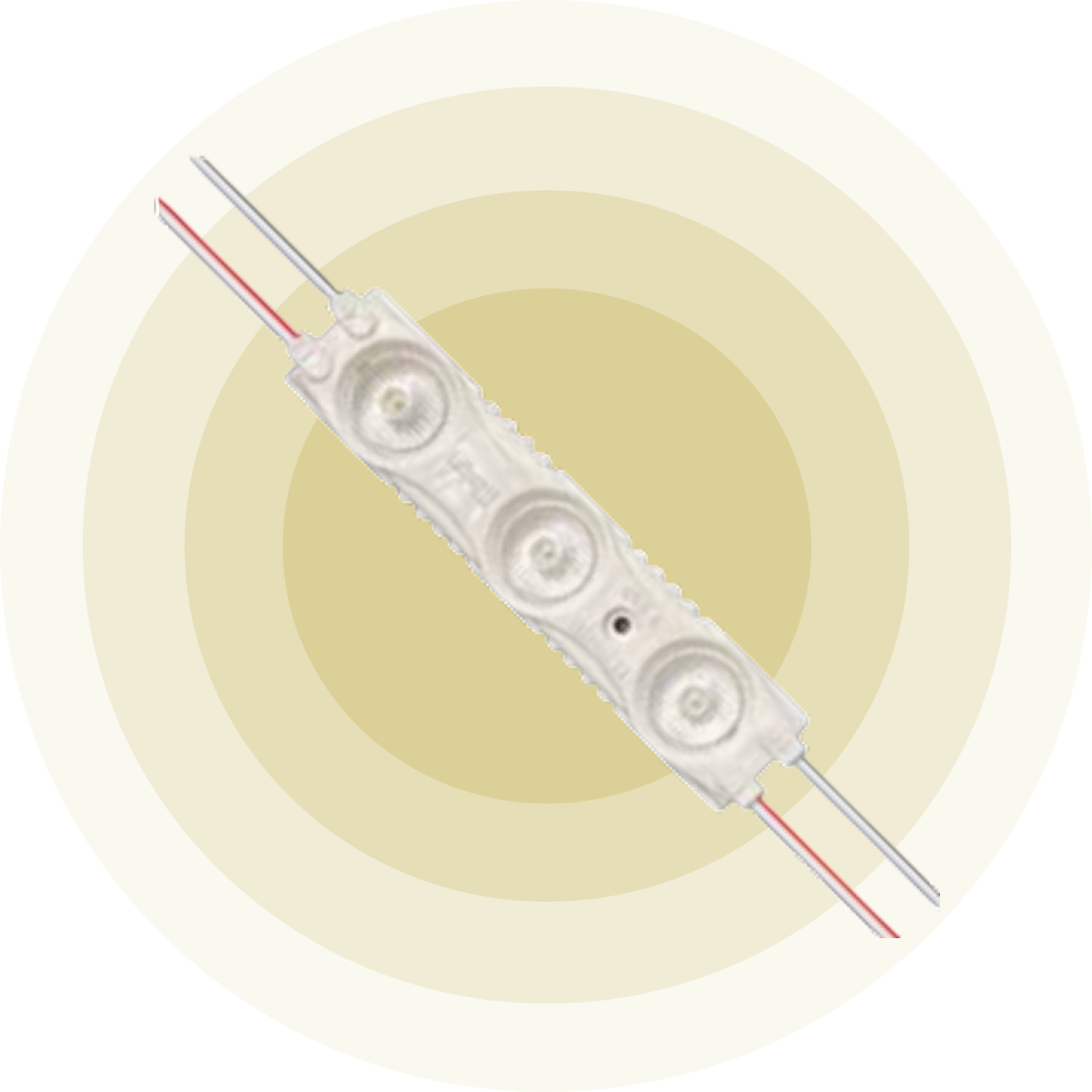

Flexura-106
Model Name: Flexura 106
Colour Temperature: 6500K, 10000K
Wattage: 1.5W
Luminous Flux: 165 Lm
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box
CUBE SERIES
High Intensity LED Modules for Compact Applications.

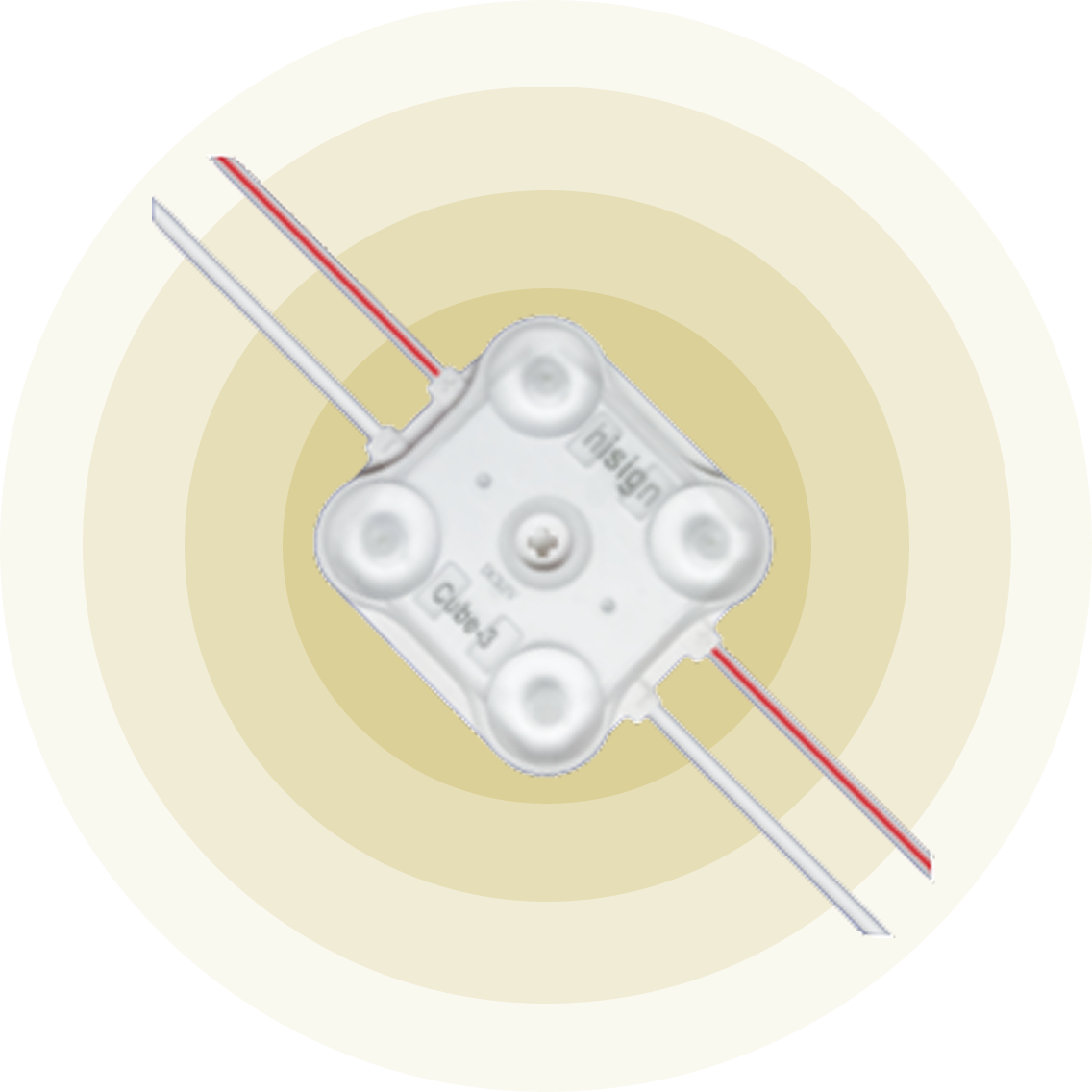

Cube-3
High-power 3W LED module powered with Lumiled chip for deep 6–10 inch light boxes and premium signage
Model Name: Cube 3
Colour Temperature: 6500K, 8000K, 10000K
Wattage: 3W
Luminous Flux: 310 Lm
Beam Angle: 170°
Application: GSB, Channel Letters, Backlit Box
OPTICA SERIES
Advanced lens-based modules for deep signage illumination.

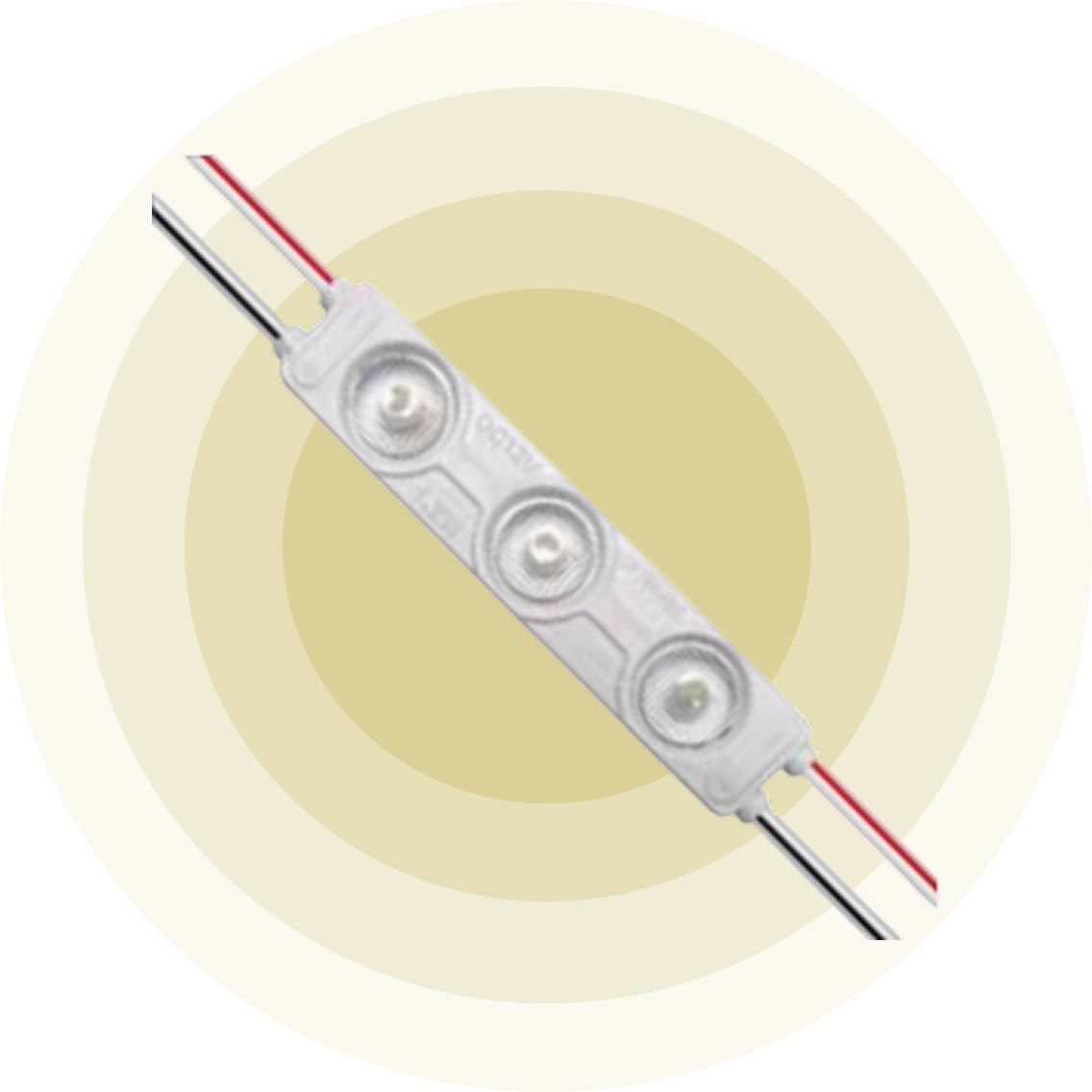

Optica-102 & Optica 105
Precision optical lens module delivering wider beam spread and consistent brightness.
Model Name: Optica 102 & Optica 105
Colour Temperature: 6500K, 11000K, Red
Wattage: 1.2W & 1.5W
Luminous Flux: 120 Lm & 150 Lm
Beam Angle: 140°
Application: GSB, Channel Letters, Backlit Box

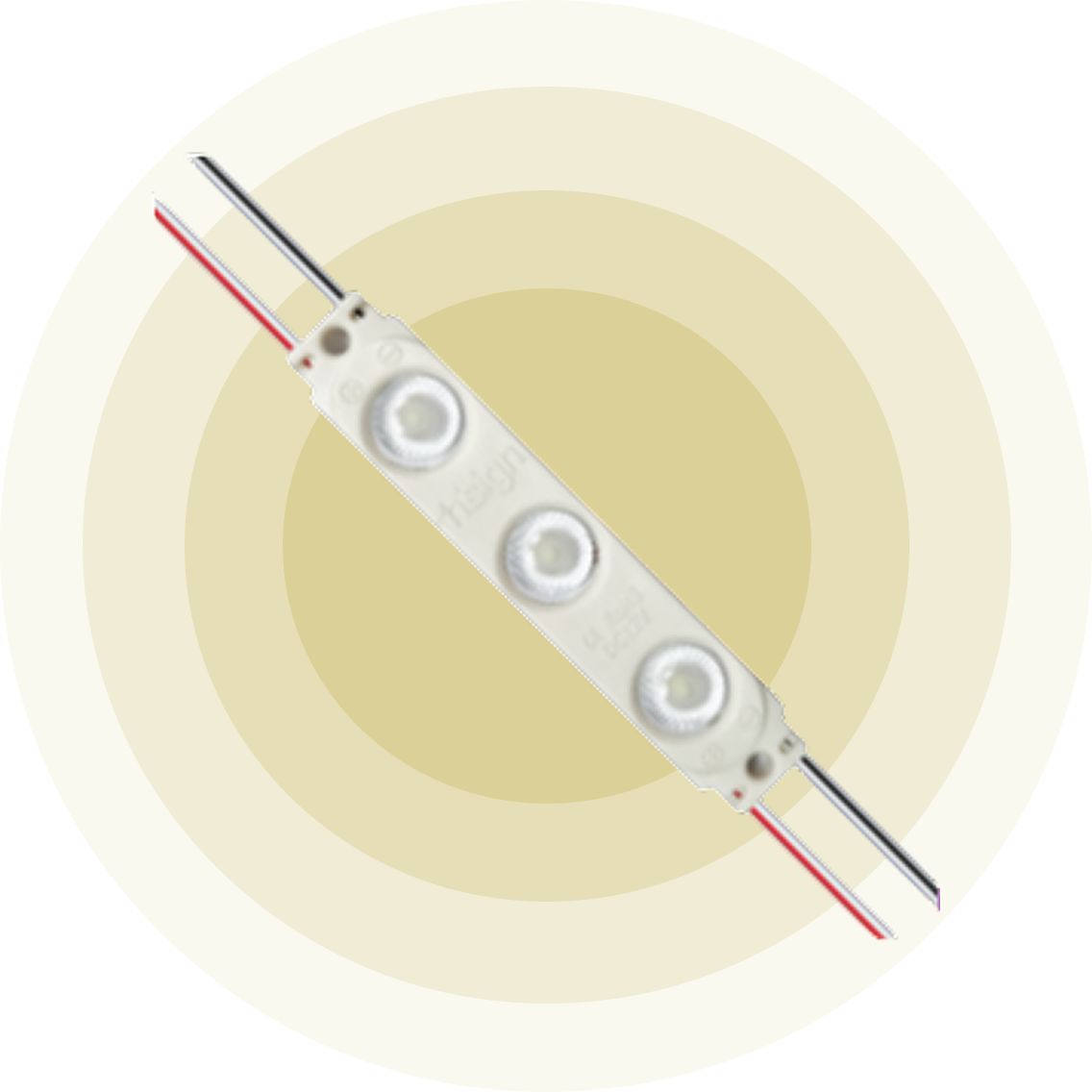

Optica-FL 072 & 102
Flood lens module engineered for deeper channel letters and light boxes.
Model Name: Optica FL 072 & Optica 102
Colour Temperature: 3000K, 4000K, 6500K, 10000K
Wattage: 0.72W & 1.2W
Luminous Flux: 95 Lm & 156 Lm
Beam Angle: 160°
Application: GSB, Channel Letters, Backlit Box

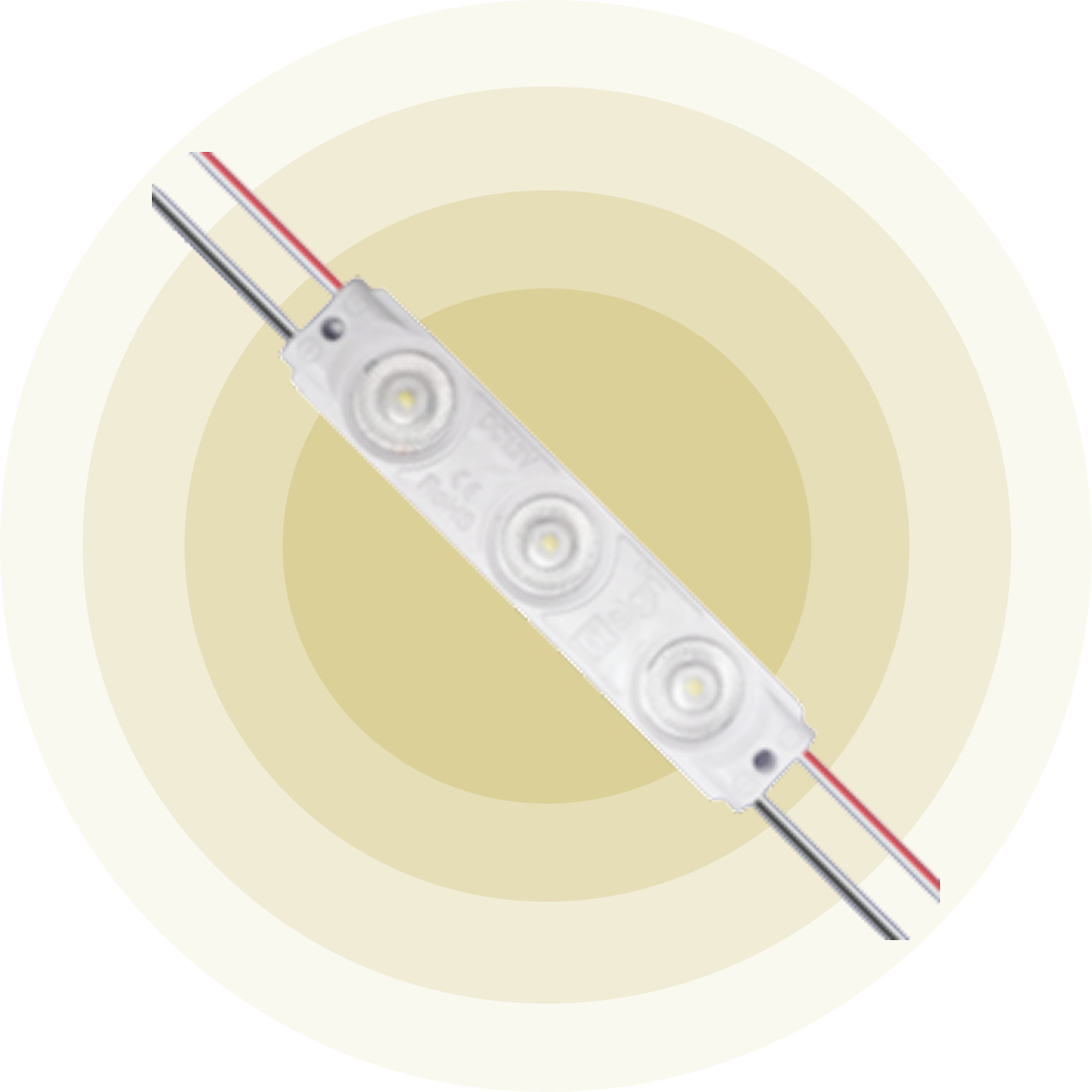

Optica-FS 102
Focused spread module with high efficiency ’Samsing chip offering high intensity for premium illuminated signage.
Model Name: Optica FL 102
Colour Temperature: 3000K, 4000K, 6500K, 10000K
Wattage: 1.2W
Luminous Flux: 120 Lm
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box

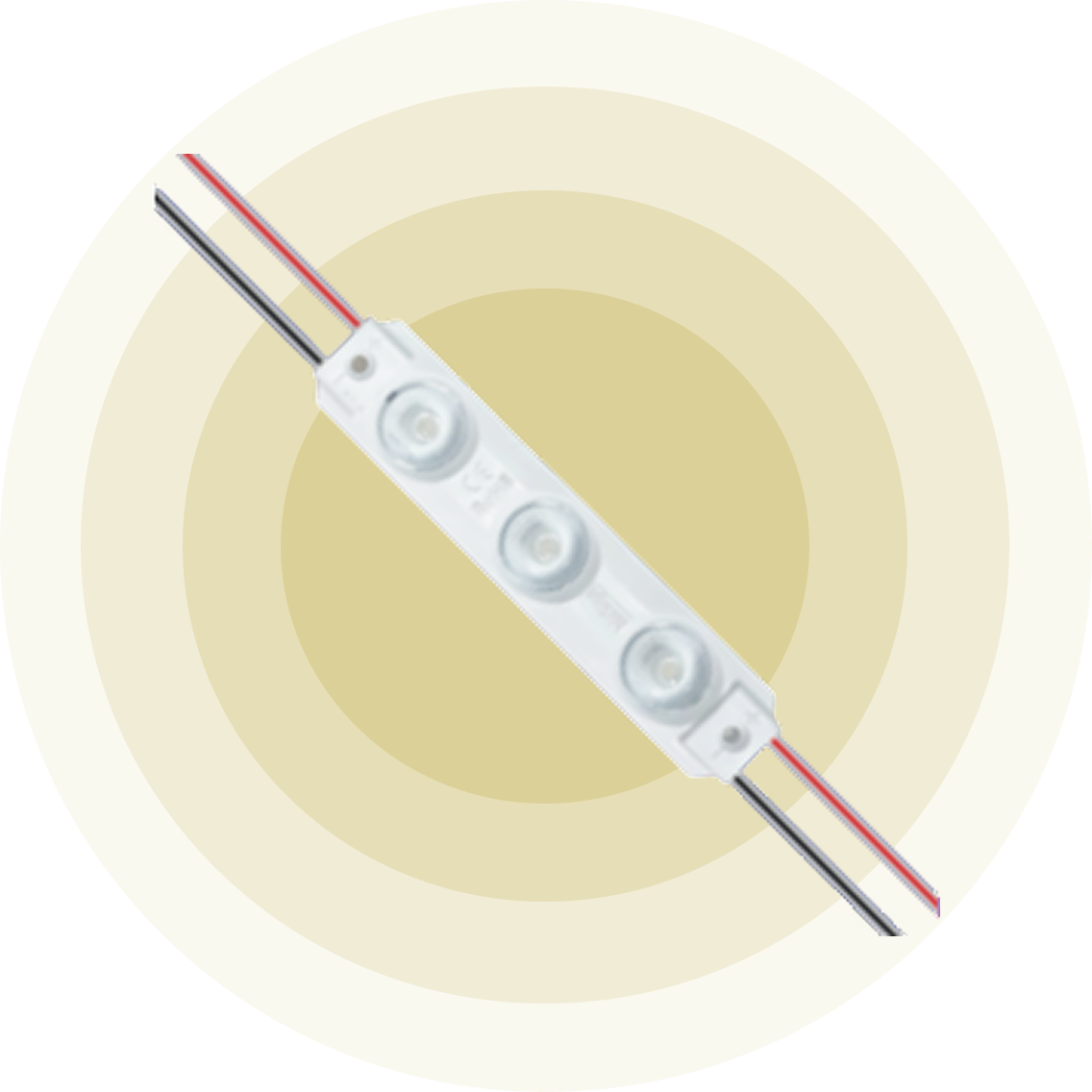

Optica-FS 105
Model Name: Optica-FS 105
Colour Temperature: 3000K, 4000K, 6500K, 10000K
Wattage: 1.5W
Luminous Flux: 155 Lm
Beam Angle: 160°
Application: GSB, Channel Letters, Backlit Box

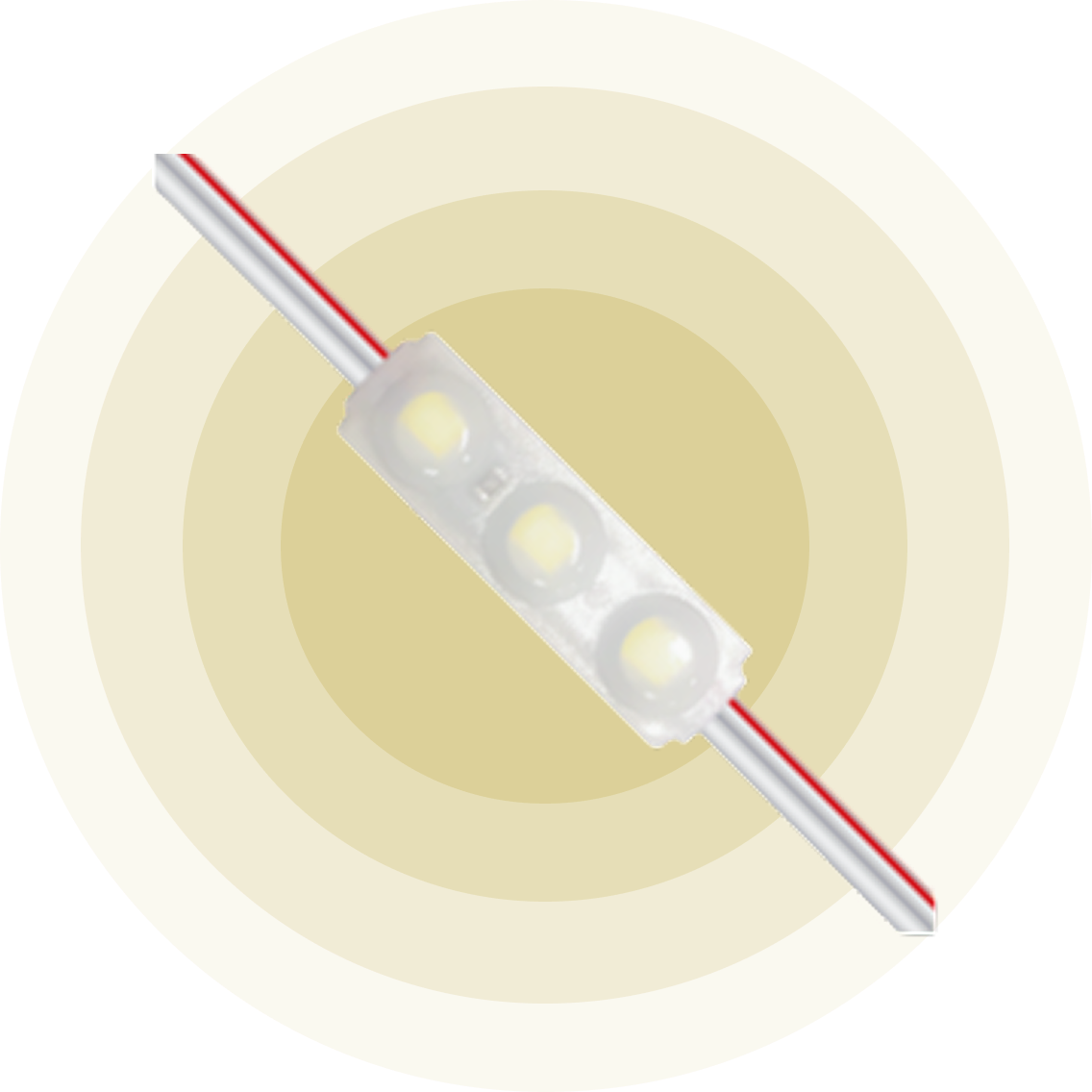

Optica Mini
Miniature optical module ideal for small and compact sign letters.
Model Name: Optica Mini
Colour Temperature: 3000K, 4000K, 6500K, 10000K
Wattage: 0.72W
Luminous Flux: 70 Lm
Beam Angle: 140°
Application: Channel Letters, Backlit Box
EDGE LIGHTING MODULES
Advanced Edge-Lit LED Solutions for Slim Acrylic & Lightbox Displays

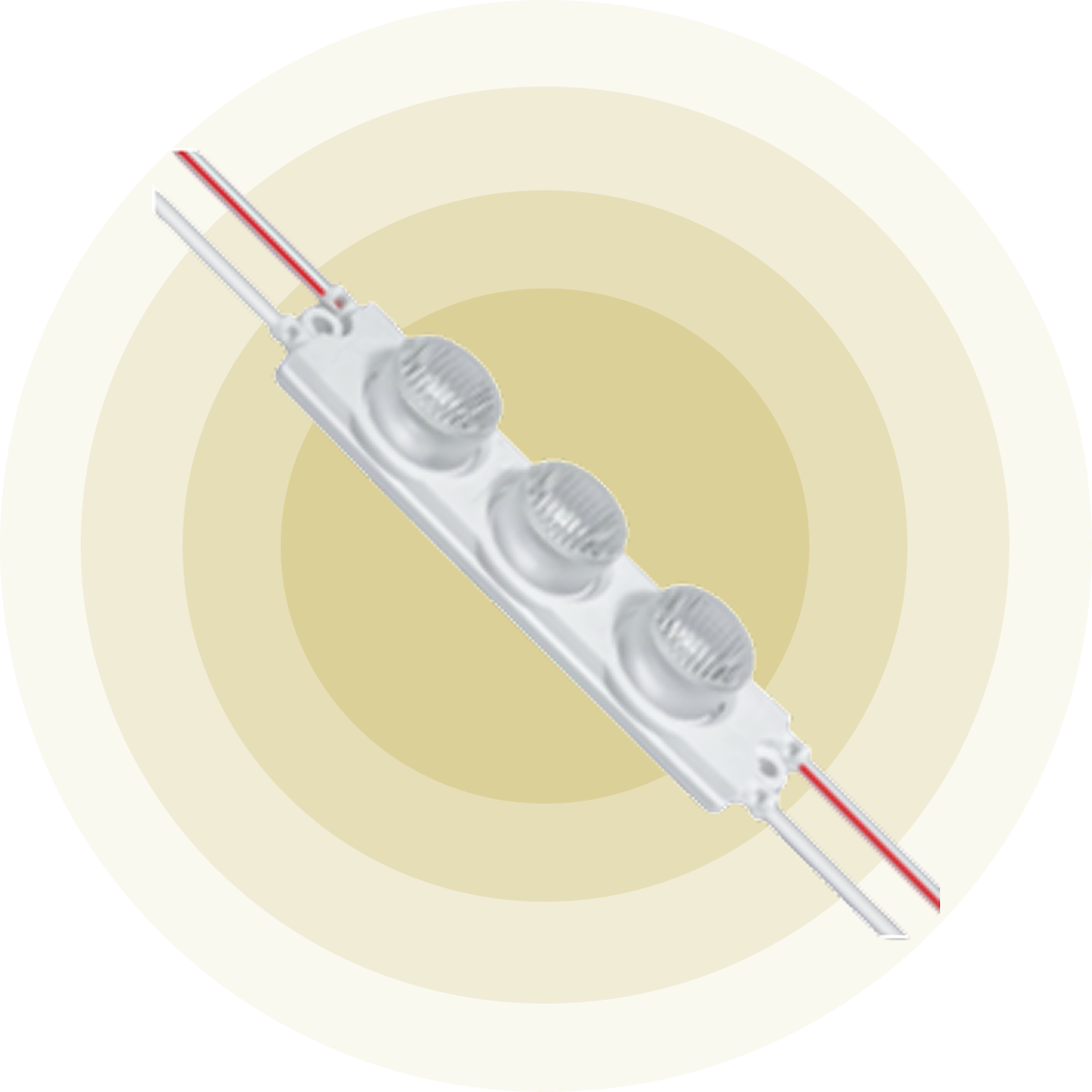

Edge-101
Model Name: Edge 101
Colour Temperature: 7500K, 10000K
Wattage: 3W
Luminous Flux: 290 Lm
Beam Angle: 50° x 20°
Application: Double Sided Light Box

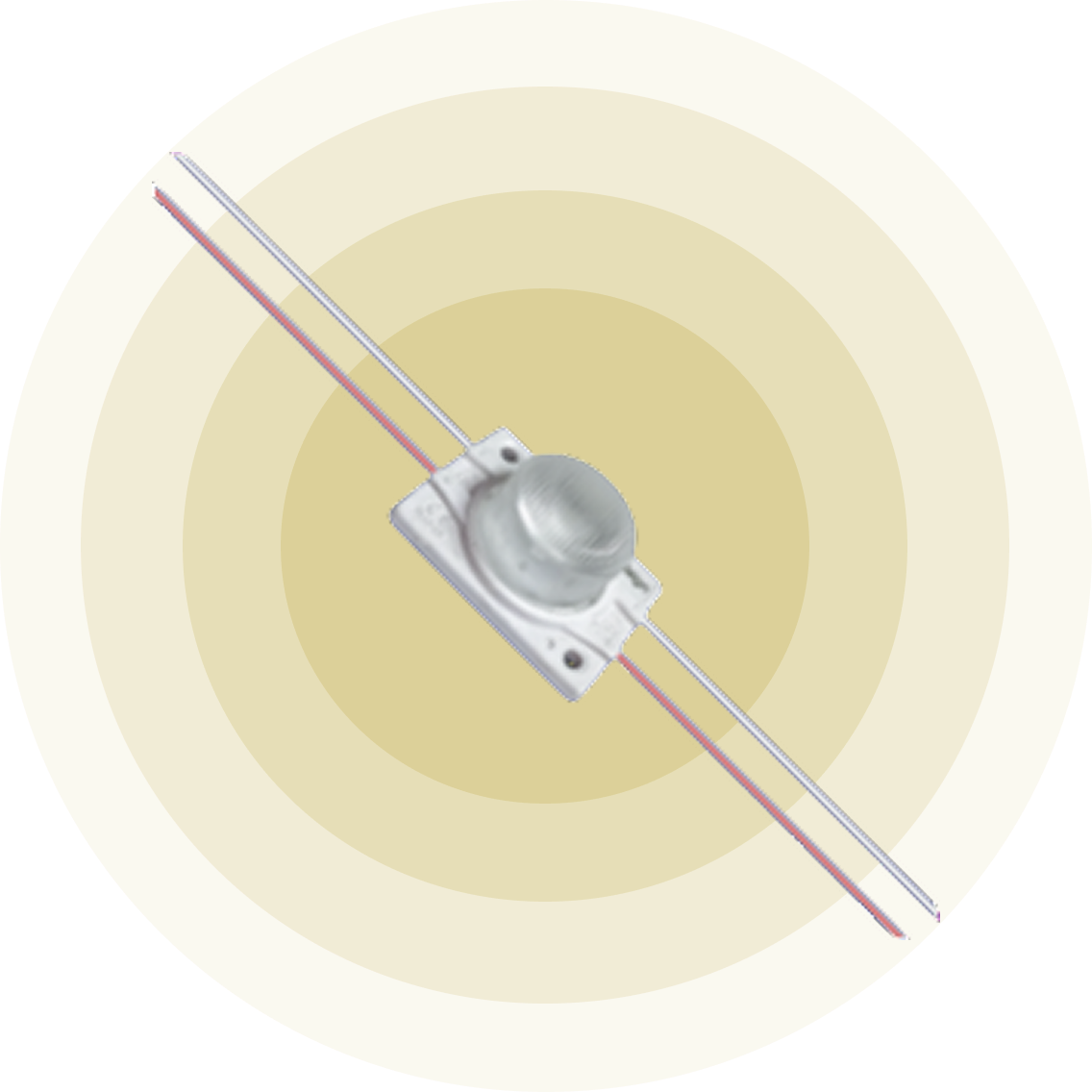

Edge-2
High-output LED module with focused beam for deep illuminated signage.
Model Name: Edge-2
Colour Temperature: 6500K, 10000K
Wattage: 2.4W
Luminous Flux: 250 Lm
Beam Angle: 45° x 20°
Application: Double Sided Light Box
LINEA SERIES
Linear LED Modules for Continuous & Uniform Signage Lighting

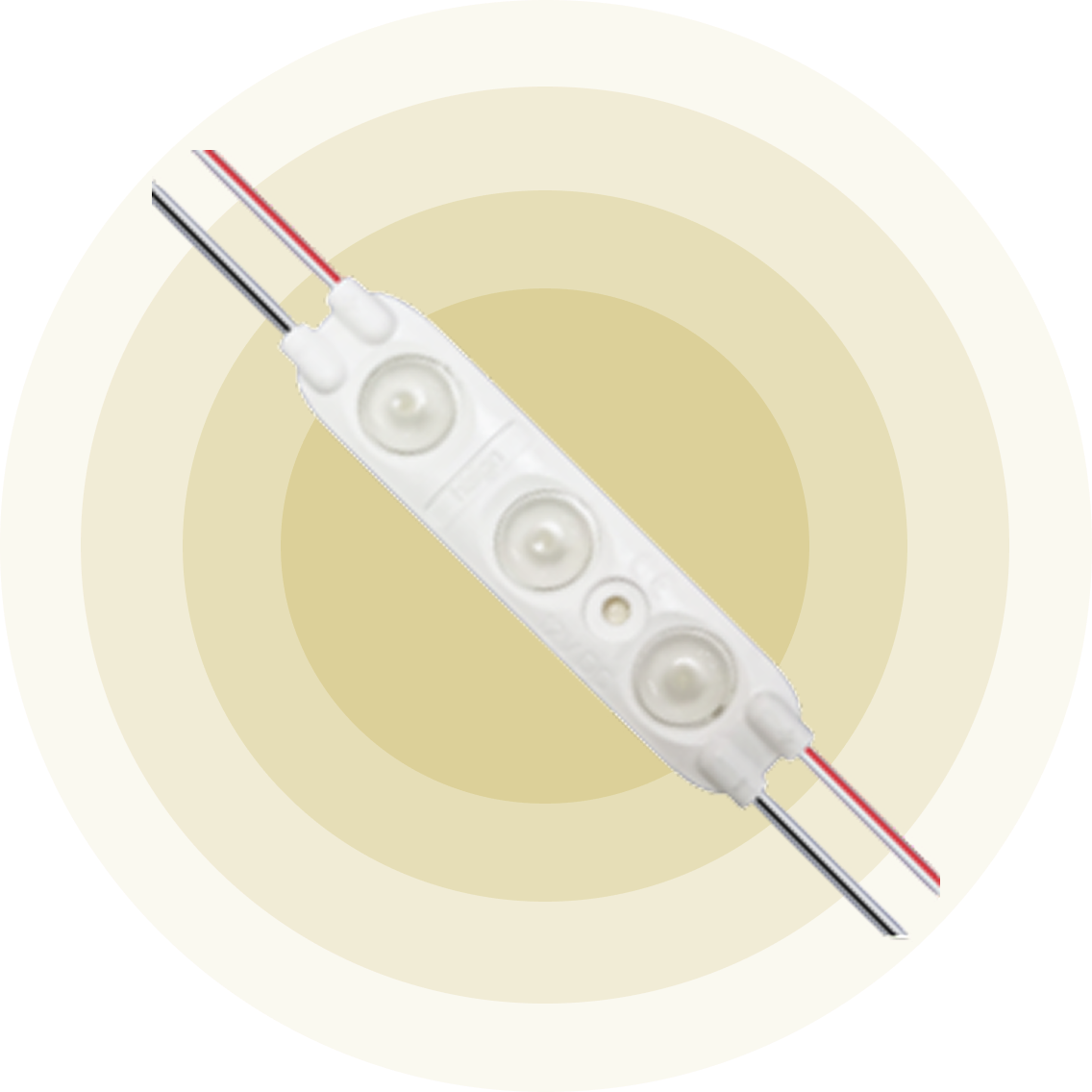

Linea-1 Eco
Energy-efficient linear LED module designed for signage and light box illumination.
Model Name: Linea-1 Eco
Colour Temperature: 6500K, 8000K, 10000K
Wattage: 1.5 W
Luminous Flux: 145 Lm
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit Box

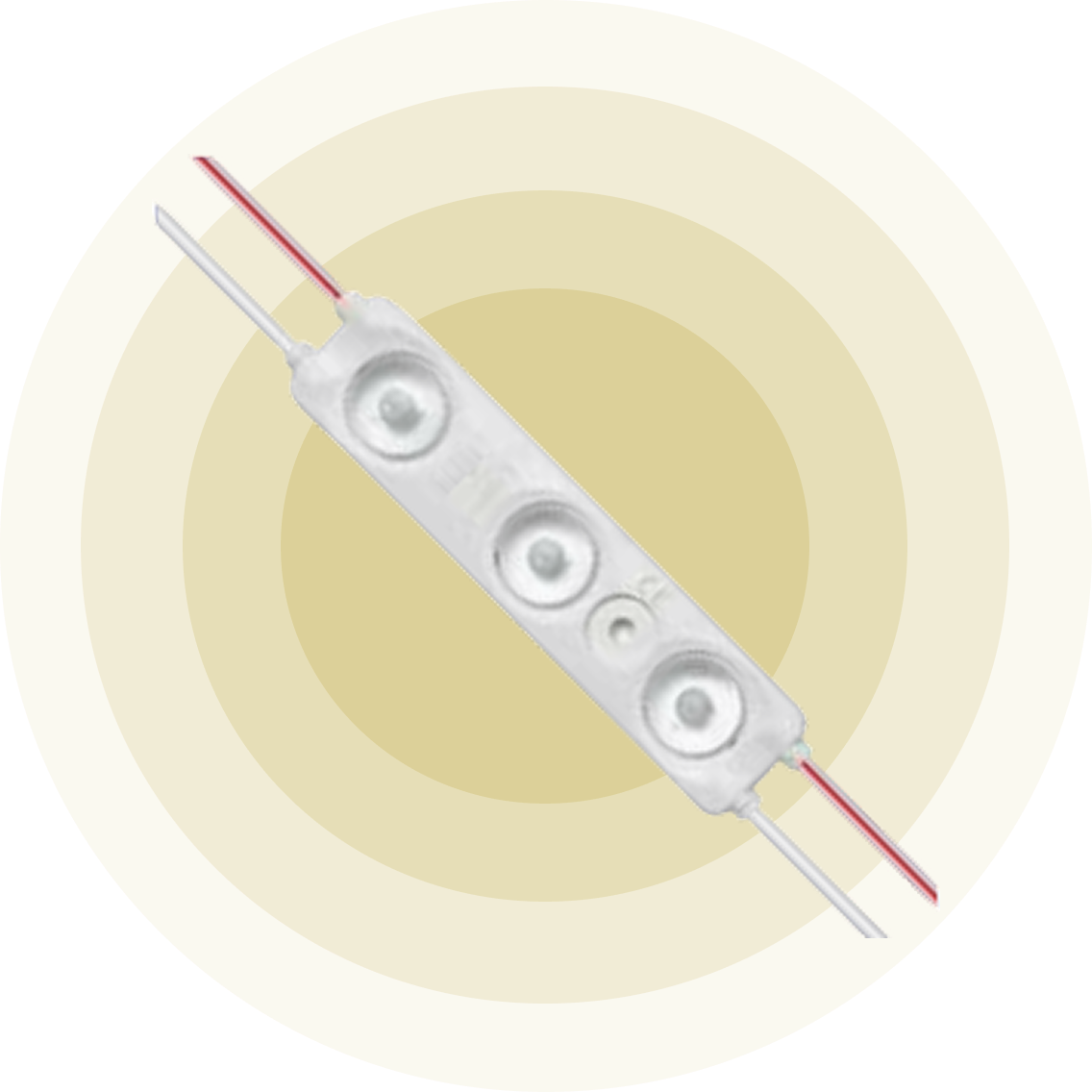

Linea-1
High-efficiency linear LED module suitable for 4–8 inch deep signage applications.
Model Name: Linea-1
Colour Temperature: 3000K, 6500K, 10000K
Wattage: 1.44 W
Luminous Flux: 144 Lm
Beam Angle: 150°
Application: GSB, Channel Letters, Backlit box

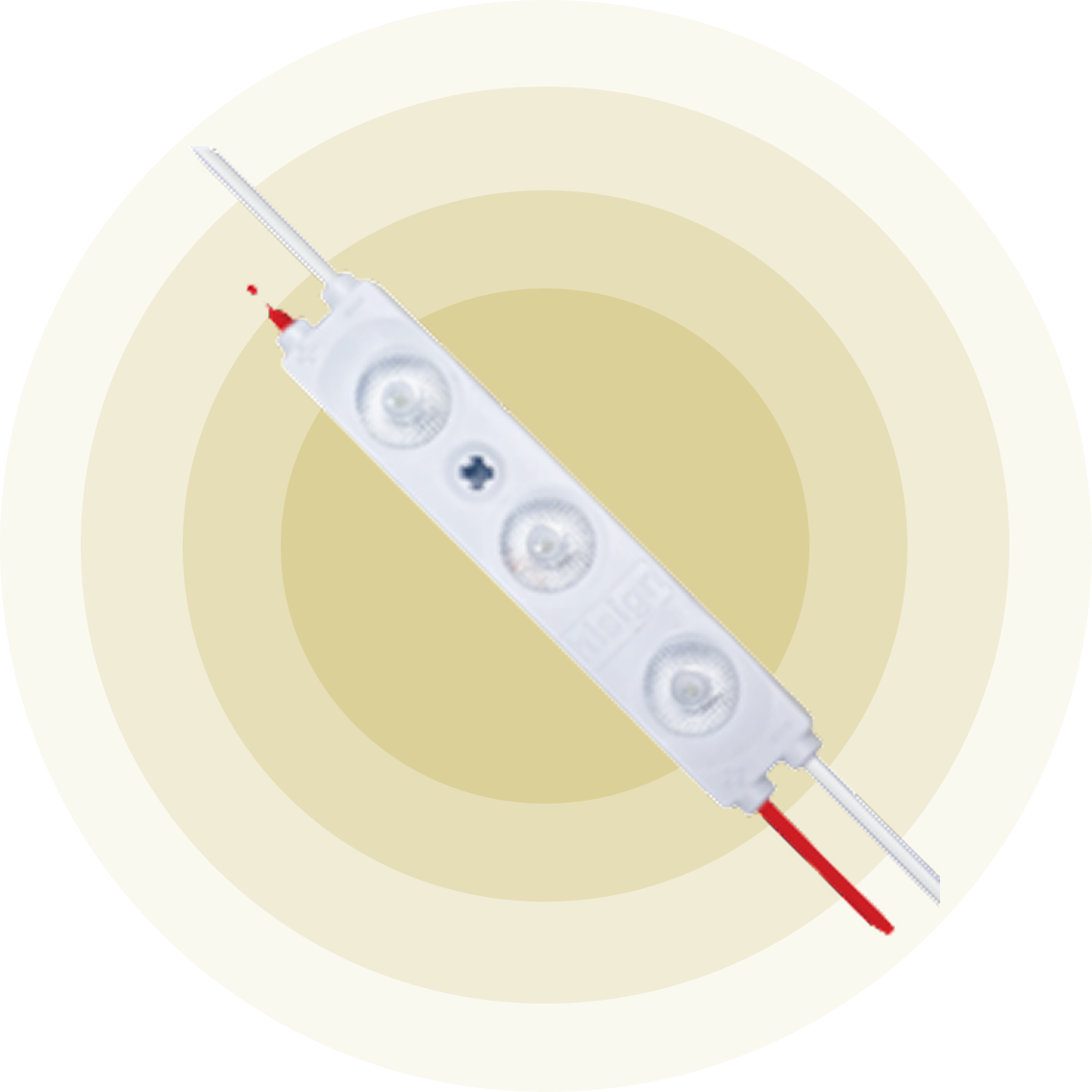

Linea-103
High-lumen linear LED module for 3–8 inch deep light boxes and channel letters.
Model Name: Linea-103
Colour Temperature: 6500K, 11000K
Wattage: 1.5 W
Luminous Flux: 145 Lm
Beam Angle: 140°
Application: GSB, Channel Letters, Backlit Box
LED STRIPS

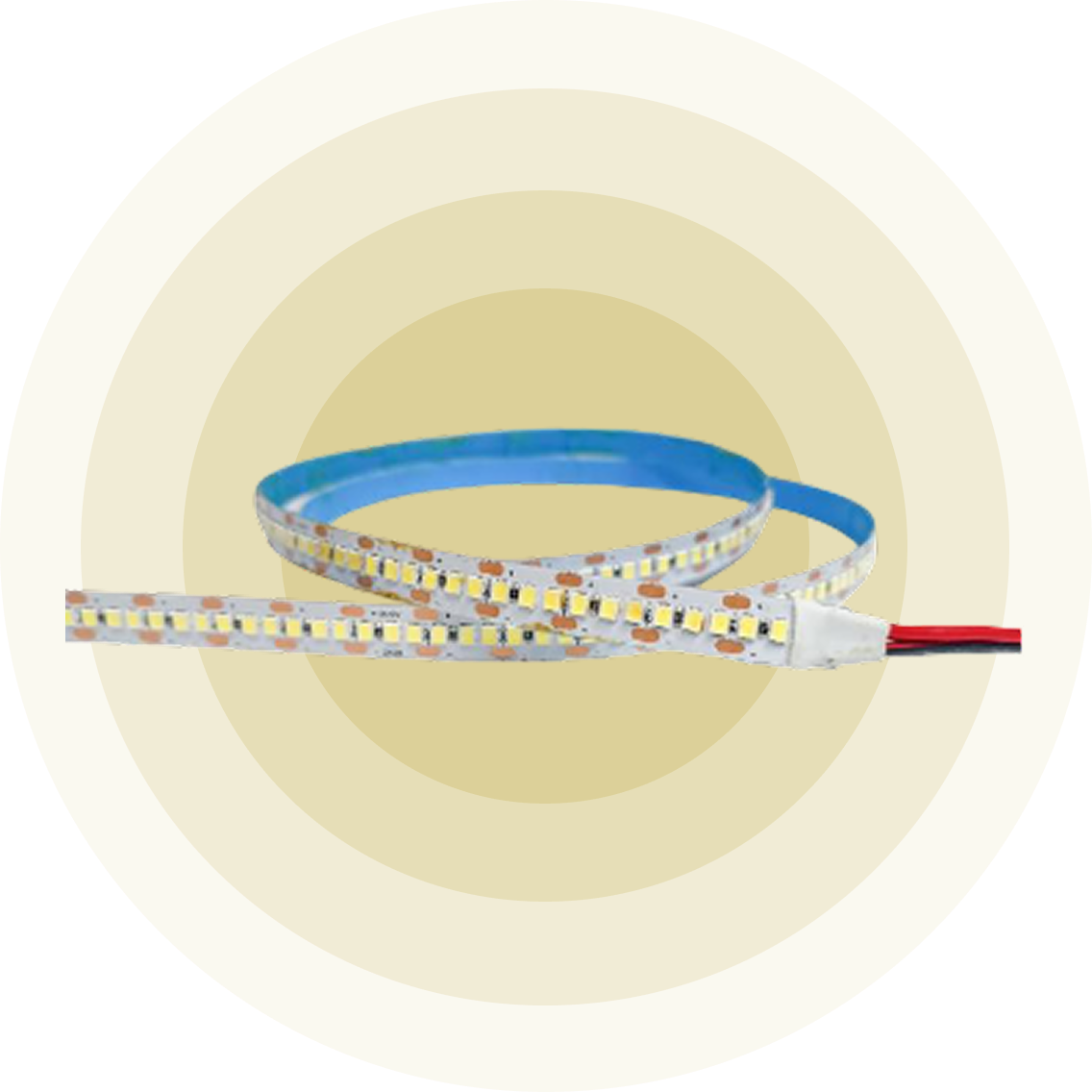

LUXOR SERIES
LED Type: 2835
No. of LEDs: 120, 240
Applications: Residential Lighting, Commercial
& Retail Spaces, Architectural
Lighting
LED LIGHT BARS

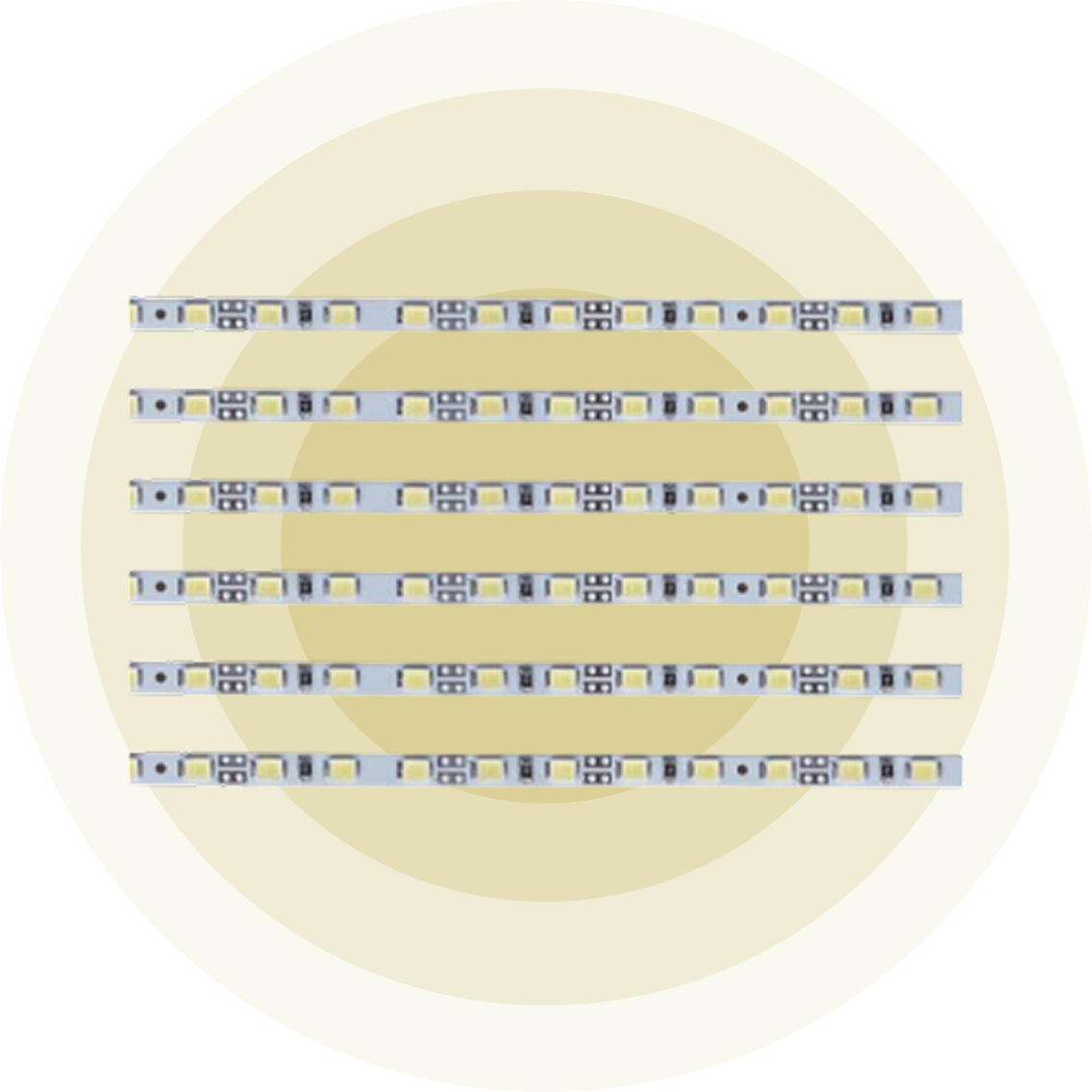

Rigid Bar
Aluminium based rigid LED bar for structured installations.
LED Type: 2835
No. of LEDs: 120 LEDs
Colour Temperature: 10000K, 12000K
Applications: Commercial Displays, POP & POS

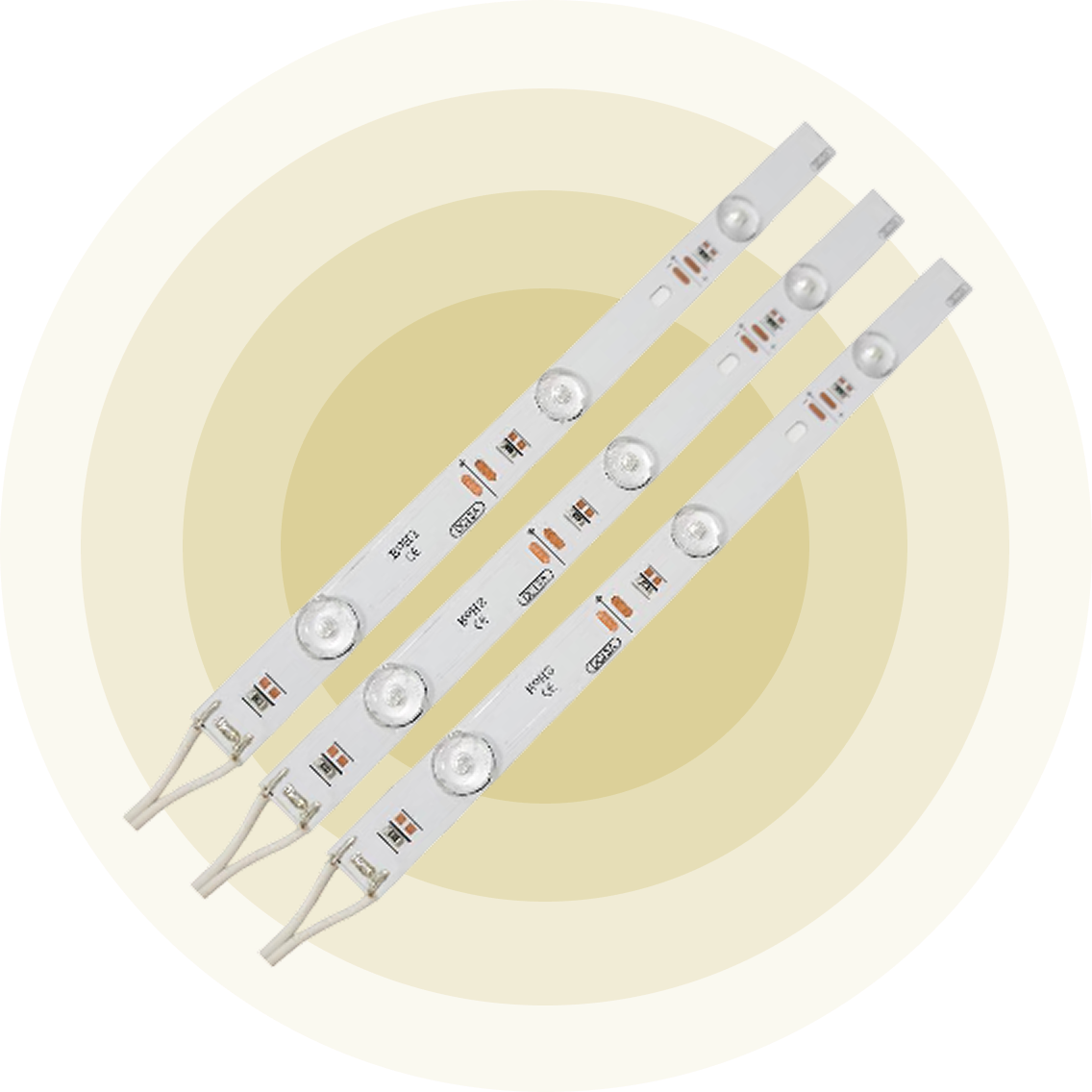

Bar-1
Bar-1 is a compact, high-efficiency LED light bar designed for small signage frames and shallow depth light boxes.
LED Type: 2835
No. of LEDs: 12/m
Colour Temperature: 13000K
Applications: Commercial Displays, POP & POS

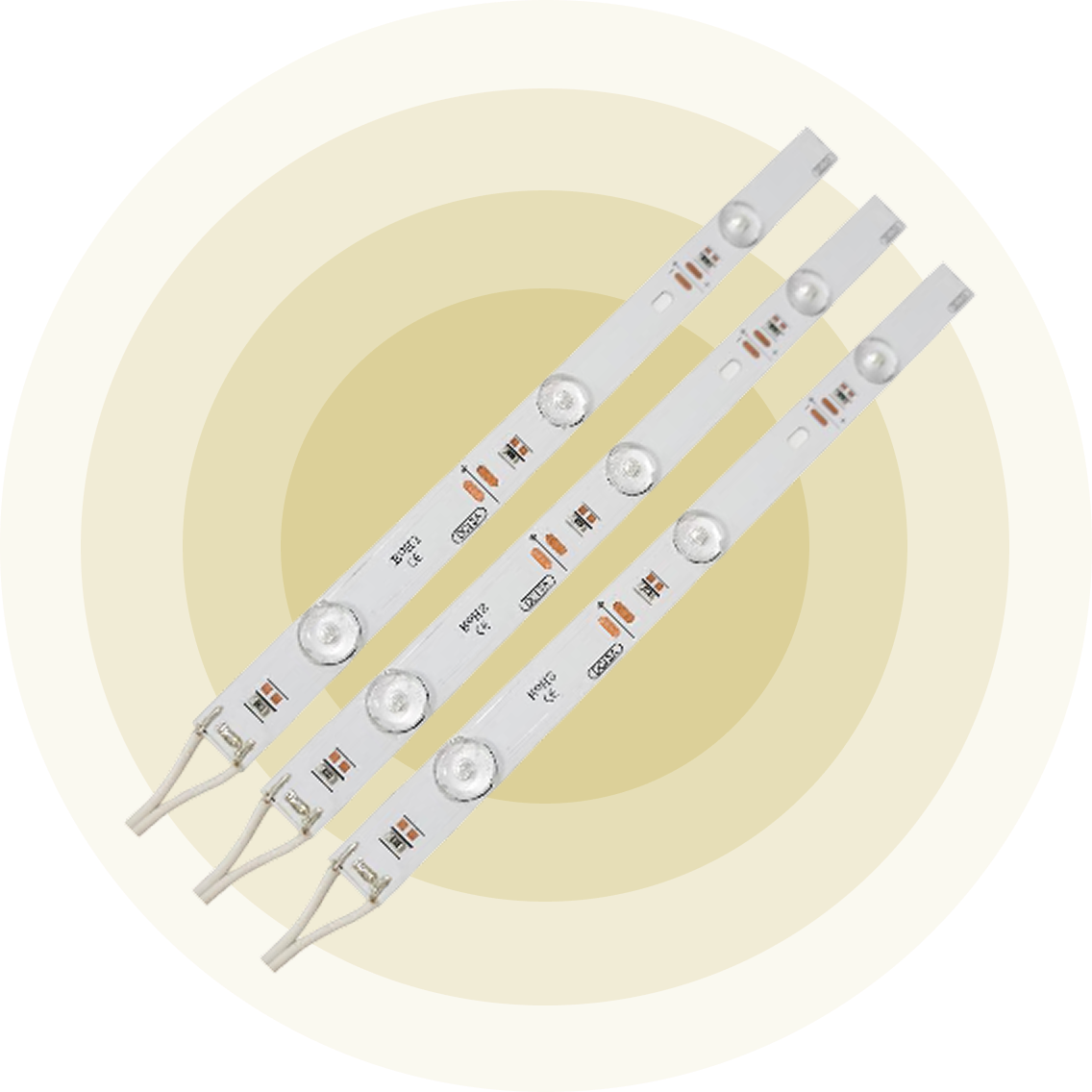

Bar-2
LED Type: 2835
No. of LEDs: 12/m
Colour Temperature: 6500K, 10000K
Applications: Commercial Displays, POP & POS

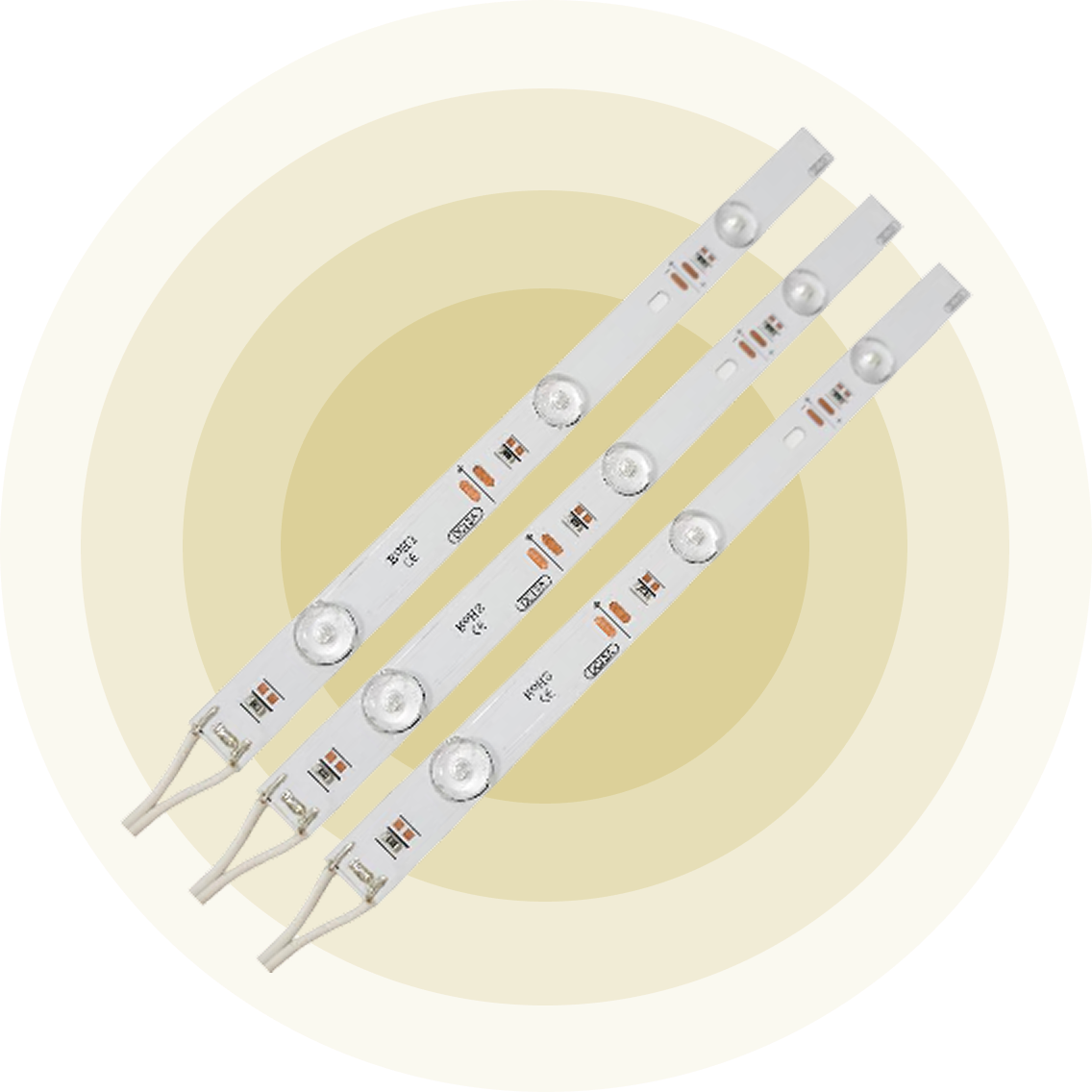

Bar-3
Bar-3 is a high-performance linear LED bar engineered for larger signage and petrol pump canopy lighting where strong and uniform illumination is required.
LED Type: 2835
No. of LEDs: 12/m
Colour Temperature: 6500k, 10000K
Applications: Commercial Displays, POP & POS
